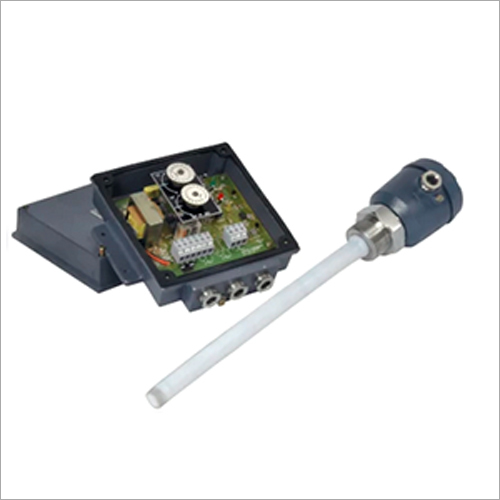

Capacitive Level Sensor

Housing

Cast Aluminum, Weather proof, back panel/wall mounting

Cable Entries

3 Nos. / 2 Nos.

Max. Amb. Temp.

- 20 C to + 60 C.

Power Consumption

5 VA approx.

Mains Voltage

230 V or 110 V AC (-15% to +10%), 50 Hz; 24 V AC/DC; 90 to 260 V AC universal power supply. (to be specified while ordering).

Relay Output

One/two sets of potential free change over contacts rated at 230V AC 6A, 50 Hz for non-inductive loads per set point.

Fail-Safe Mode

Max. or Min. Field selectable.

Indication

Red LED for alarm, Green LED for normal, Yellow LED for system fault.

Response Time

0.2 Second

Switching Delay

Adjustable from 0.5 to 20 Second. for probe covered or uncovered condition.

Connection to Electronic Insert

3 - core unscreened cable.

Initial Capacitance

0 to 290 pf. in 3 overlapping ranges. (For single point switching)
0 to 1200 pf. in 3 overlapping ranges. (For pump control & multi point switching)

Switching Hysteresis

0.5 pF. typical. (For independent switching) & Continuously adjustable over the entire range. (For pump control switching)

Cable Entries

3 Nos. / 2 Nos.

Power Consumption

5 VA approx

Temperature

- 20 dig C to + 60 dig C

Country of Origin

Made in India
